Needle Loom Machine
| Business Type | Manufacturer, Exporter, Supplier |
| Country of Origin | India |
| Model Name/Number | JYF 10/30 |
| Brand Name | Wenli |
| No of Heads | 10 |
| Speed | 1000 RPM |
| Max Reed Space | 30mm |
| Take Up System | Single Roller |
| Net Weight | 610Kg |
| Number of Frame | 14/16 |
| Motor Power | 1.5 kW |
| Cycle Pattern Chain | 1:48 |
| Weft Density | 3.5-36.7 cm (8.9-93/inch) |
| Gross Weight | 650 Kg |
| Number of Ribbon | 10 |
Faster and Convenient:
JYF series need looms are designed to deliver high quality finished products at a high speed with relatively low noise and also low , maintenance cost. Through its easy to operate, it make more reliable product with stable production.
Applications:
It can produce various kinds of narrow Fabric Webbing Tapes, Twill Tapes, Curtain Tape, Mattress Tapes elastic tapes, shoulder straps, cotton tape, Polyester tape, pp tape etc.
Features:
JYF series need looms has a stable structure with low vibration, low noise and extremely low maintenance cost.
| Business Type | Manufacturer, Exporter, Supplier |
| Country of Origin | India |
| Model Name/Number | JYF 2/160 |
| Brand Name | Wenli |
| No of Heads | 2 |
| Number of Frames | 14/16 |
| Net Weight | 610 Kg |
| Max Reed Space | 160mm |
| Take Up System | Double Roller |
| Weft Density | 3.5-36.7 cm (8.9-93/inch) |
| Number of Ribbons | 2 |
| Speed | 650 RPM |
| Motor Power | 1.5 kW |
| Cycle Pattern Chain | 1:48 |
| Gross Weight | 650 Kg |
| Business Type | Manufacturer, Exporter, Supplier |
| Country of Origin | India |
| Model Name/Number | JYF 6/55 D |
| Brand Name | Wenli |
| Machine Type | Automatic |
| Number of Frames | 14/16 |
| Number of Ribbons | 6 |
| Max Reed Space | 55mm |
| Motor Power | 1.5 Kw |
| Speed | 1000 RPM |
| No of Heads | 6 |
| Cycle Pattern Chain | 1:48 |
| Take Up System | Double Roller |
| Weft Density | 3.5-36.7 cm (8.9-93/inch) |
| Gross Weight | 65kg |
| Net Weight | 610kg |
Faster and Convenient:
JYF series need looms are designed to deliver high quality finished products at a high speed with relatively low noise and also low , maintenance cost. Through its easy to operate, it make more reliable product with stable production.
Applications:
It can produce various kinds of narrow Fabric Webbing Tapes, Twill Tapes, Curtain Tape, Mattress Tapes elastic tapes, shoulder straps, cotton tape, Polyester tape, pp tape etc.
Features:
JYF series need looms has a stable structure with low vibration, low noise and extremely low maintenance cost.
| Business Type | Manufacturer, Exporter, Supplier |
| Country of Origin | India |
| Model Name/Number | JYF 8/35 |
| Brand Name | Wenli |
| No of Head | 8 |
| Max Reed Space | 35mm |
| Speed | 1000 RPM |
| Number of Frames | 14/16 |
| Take Up System | Double Roller |
| Gross Weight | 650Kg |
| Cycle Pattern Chain | 1.48 |
| Net Weight | 610 Kg |
| Motor Power | 1.5 KW |
| Weft Density | 3.5-36.7 cm (8.9-93/inch) |
| Number of Ribbon | 8 |
Faster and Convenient:
JYF series need looms are designed to deliver high quality finished products at a high speed with relatively low noise and also low , maintenance cost. Through its easy to operate, it make more reliable product with stable production.
Applications:
It can produce various kinds of narrow Fabric Webbing Tapes, Twill Tapes, Curtain Tape, Mattress Tapes elastic tapes, shoulder straps, cotton tape, Polyester tape, pp tape etc.
Features:
JYF series need looms has a stable structure with low vibration, low noise and extremely low maintenance cost.
| Business Type | Manufacturer, Exporter, Supplier |
| Country of Origin | India |
| Model Name/Number | JYF8/35-192 |
| Brand | Wenli |
| Gross Weight | 650 kg |
| No of Heads | 8 |
| Weft Density | 3.5-36.7/cm / 8.9/93/Inch |
| Take Up System | Double Roller |
| Width of Reed | 35mm |
| Cycle Pattern Chain | 1.48 |
| Motor Power | 1.5 Kw |
| Net Weight | 610 Kg |
| Number of Frame | 8 |
| Speed | 1000 RPM |
| Number of Ribbon | 8 |
Wenli JYF Series of Jacquard Loom JYF computerized jacquard loom can manufacture different kinds of elastic and non-elastic jacquard fabric. This kind of machine adopts the newest computerized electronic jacquard bibcock which makes its type set is controlled by computer. It's easy to operate, learn and to use.
The machine also adopts a two-speed motor system which makes it faster and convenient when debugging. On the other hand, it adopt pulley feeding which will make the speed steady and equality.
The feature highly precision, low depreciation, and convenient in debugging and maintaining.
Standard Equipment:
Creel (1 Set)
Rubber Feeder (Device On Request)
| Business Type | Manufacturer, Exporter, Supplier |
| Country of Origin | India |
| Model Name/Number | JYP 2/160 |
| Brand Name | Wenli |
| Net Weight | 800kg |
| Gross Weight | 900kg |
| Number of Ribbon | 2 |
| Motor Power | 1.5 kW |
| Number of Frame | 14 |
| Cycle Pattern Chain | 11.31 |
| Weft Density | 3.5-36.7/cm(8.9-93/inch) |
| Speed | 500 RPM |
| No of Heads | 2 |
| Max Reed Space | 160 mm |
JYP Series Needle Loom can manufacture different kinds of Narrow Fabric, Webbing Slings, belts, Twill Tapes, Curtain Tape, Matters Tapes etc.
Faster And Convenient:
JYP series need looms are designed to deliver high quality finished products at a high speed with relatively low noise and also low , maintenance cost. Through its easy to operate, it make more reliable product with stable production.
Applications:
It can produce various kinds of narrow Fabric Webbing Tapes, Twill Tapes, Curtain Tape, Mattress Tapes elastic tapes, shoulder straps, cotton tape, Polyester tape pp tape etc.
Features:
JYP series need looms has a stable structure with low vibration, low noise and extremely low maintenance cost.
Standard Equipment:
Creel (1 Set)
Rubber Feeder (Device On Request)
Specifications:
Model and SpecificationJYP-8/35JYP/55JYP-4/80JYP-4/55JYP-2/110JYP-2/130Numbers of Ribbon864422Width of Reed35558055110130Maximum Speed1000900800900750750Collocation of RollerSingle Roller: 16, Double Roller: 14Single Roller: 16, Double Roller: 14Single Roller: 16, Double Roller: 14Double RollerDouble RollerDouble RollerWelft Density3.5-36.7 cm (8.9-93 Inch)3.5-36.7 cm (8.9-93 Inch)3.5-36.7 cm (8.9-93 Inch)3.5-36.7 cm (8.9-93 Inch)3.5-36.7 cm (8.9-93 Inch)3.5-36.7 cm (8.9-93 Inch)Motor Power1.5 kW1.5 kW1.5 kW1.5 kW1.5 kW1.5 kWCycle Patten Chain1:481:481:481:481:481:48
| Business Type | Manufacturer, Exporter, Supplier |
| Model Name/Number | JYS 2/110 FIBC |
| Brand Name | Wenli |
| Take up System | Double Roller |
| Gross Weight | 535 Kg |
| No of Heads | 2 |
| Motor Power | 1.1 KW |
| Number of Frames | 12 |
| Net Weight | 435 Kg |
| Weft Density | 1.8-5/cm |
| Number of Ribbons | 2 |
| Speed | 750 RPM |
| Cycle Pattern Chain | CAM |
| Max Reed Space | 110mm |
JYS series of needle looms can weave various PP flat film cotton, nylon and high bulk polyester yarn material heavy webbings. These machines are most ideal equipment for FIBC webbing slings, army belts, safety belts, cargo lifting slings, heavy elastic strap for sofa, cotton niwar and span polyester heavy belts etc.
Sturdy, Heavy Duty and Convenient:
JYS series needle looms are designed to deliver high quality finished products. Its sturdy design makes it more convenient to perform extra heavy duty functions, with low maintenance and stable productions.
Applications:
It can produce various kinds of heavy belts, FIBC webbing slings, cargo lifting slings, freight lashing, safety belts, climbing belts, military belts etc.
Features:
JYS series needle looms has sturdy design structure with low vibration, low noise and extremely low maintenance cost.
| Business Type | Manufacturer, Exporter, Supplier |
| Country of Origin | India |
| Model Name/Number | JYS 2/110B |
| Brand Name | Wenli |
| Take Up System | Double Roller |
| Weft Density | 1.8-5/cm |
| Cycle Pattern Chain | 1:48 |
| Number of Frame | 12 |
| Motor Power | 1.1 kW |
| No of Heads | 2 |
| Gross Weight | 535Kg |
| Speed | 750 RPM |
| Max Reed Space | 110mm |
| Net Weight | 435kg |
| Number of Ribbon | 2 |
JYS series of needle looms can weave various PP flat film cotton, nylon and high bulk polyester yarn material heavy webbings. These machines are most ideal equipment for FIBC webbing slings, army belts, safety belts, cargo lifting slings, heavy elastic strap for sofa, cotton niwar and span polyester heavy belts etc.
Sturdy, Heavy Duty and Convenient:
JYS series needle looms are designed to deliver high quality finished products. Its sturdy design makes it more convenient to perform extra heavy duty functions, with low maintenance and stable productions.
Applications:
It can produce various kinds of heavy belts, FIBC webbing slings, cargo lifting slings, freight lashing, safety belts, climbing belts, military belts etc.
Features:
JYS series needle looms has sturdy design structure with low vibration, low noise and extremely low maintenance cost.
| Business Type | Manufacturer, Exporter, Supplier |
| Country of Origin | India |

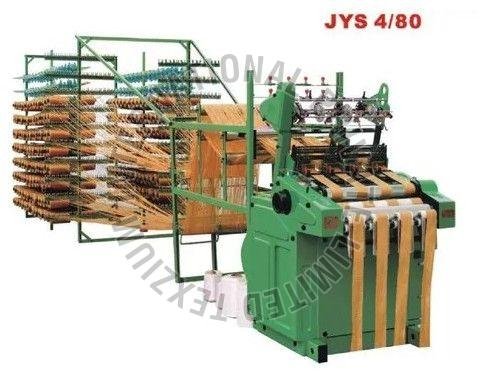

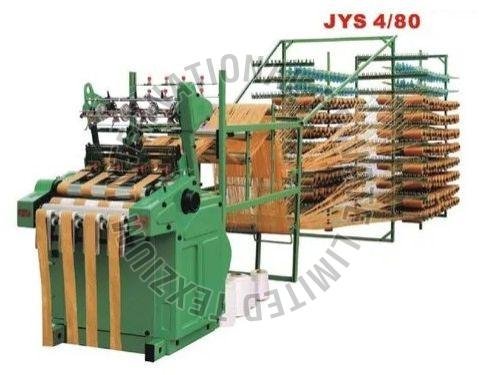

| Model Name/Number | JYS 4/80 |
| Brand Name | Wenli |
| Gross Weight | 623Kg |
| No of Heads | 4 |
| Motor Power | 1.1 Kw |
| Max Reed Space | 80 |
| Take Up System | Double |
| Weft Density | 1.8-5/cm |
| Average Output | 10 meter/minute |
| Frequency | 50 Hz |
| Net Weight | 523 Kg |
JYS series of needle looms can weave various PP flat film cotton, nylon and high bulk polyester yarn material heavy webbings. These machines are most ideal equipment for FIBC webbing slings, army belts, safety belts, cargo lifting slings, heavy elastic strap for sofa, cotton niwar and span polyester heavy belts etc.
Sturdy, Heavy Duty and Convenient:
JYS series needle looms are designed to deliver high quality finished products. Its sturdy design makes it more convenient to perform extra heavy duty functions, with low maintenance and stable productions.
Applications:
It can produce various kinds of heavy belts, FIBC webbing slings, cargo lifting slings, freight lashing, safety belts, climbing belts, military belts etc.
Features:
JYS series needle looms has sturdy design structure with low vibration, low noise and extremely low maintenance cost.
Technical Specification:
ModelsNumber of RibbonsWidth of ReedNo of HeadsMax Reed Space (mm)Speed (RPM)Motor Power (kW)Weft DensityNumber of FramesCycle Pattern ChainTake up SystemNet weightGross weightJYS 2/110B2110B21107501.11.8-5/cm121:48Double Roller435 Kg535 KgJYS 2/110 FIBC2110FIBC21107501.11.8-5/cm12CamDouble Roller435 Kg535 KgJYS 2/130B2130B21307501.11.8-5/cm121:48Double Roller435 Kg535 KgJYS 2/130-FIBC2130-FIBC21307501.11.8-5/cm12CamDouble Roller435 Kg535 KgJYS 4/90 FIBC4090-FIBC4908001.11.8-5/cm8CamDouble Roller523 Kg623 Kg
| Business Type | Manufacturer, Exporter, Supplier |
| Country of Origin | India |
| Model Name/Number | JYS 4/95 |
| Brand Name | Wenli |
| Cycle Pattern Chain | Cam |
| Weft Density | 1.8-5/cm |
| No of Heads | 4 |
| Net Weight | 523 Kg |
| Number or Ribbons | 4 |
| Speed | 800 RPM |
| Motor Power | 1.1 kW |
| Max Reed Space | 95mm |
| Number of Frames | 8 |
| Take up System | Double Roller |
| Gross Weight | 623 kg |
JYS series of needle looms can weave various PP flat film cotton, nylon and high bulk polyester yarn material heavy webbings. These machines are most ideal equipment for FIBC webbing slings, army belts, safety belts, cargo lifting slings, heavy elastic strap for sofa, cotton niwar and span polyester heavy belts etc.
Sturdy, Heavy Duty and Convenient:
JYS series needle looms are designed to deliver high quality finished products. Its sturdy design makes it more convenient to perform extra heavy duty functions, with low maintenance and stable productions.
Applications:
It can produce various kinds of heavy belts, FIBC webbing slings, cargo lifting slings, freight lashing, safety belts, climbing belts, military belts etc.
Features:
JYS series needle looms has sturdy design structure with low vibration, low noise and extremely low maintenance cost.
| Business Type | Manufacturer, Exporter, Supplier |
| Country of Origin | India |
| Model Name/Number | JYW 4/130 |
| Brand Name | Wenli |
| Motor Power | 1.1 kW |
| Number of Ribbon | 4 |
| Cycle Pattern Chain | 1.48 |
| Weft Density | 3.5 ~ 36.7/cm (8.9 ~ 93/inch) |
| Speed | 800 RPM |
| Gross Weight | 535 Kg |
| Number of Frame | 14 |
| Net Weight | 435 Kg |
| Max Reed Space | 130 mm |
| Take Up System | Double Roller |
JYW series needle loom can manufacture different kinds of narrow fabric,webbing tapes curtain tape elastic and belts etc.
Faster and Convenient:
JYW series Needle looms are designed to deliver4 high quality finishd products at a high speed with relatively low noise and low maintenance cost.through its easy to operate, it make more reliable product with relatively higher production.
Applications:
It can produce various kinds of narrow fabric webbing Tapes, twill tape , curtain tape, elastic tape, surgical elastic etc.
Features:
JYW series needle looms are equipped with double shedding lever system. It has a stable structure with low vibration, low noise and extremely low maintenance cost.
| Business Type | Manufacturer, Exporter, Supplier |
| Model Name/Number | JYZ 10/27 |
| Brand Name | Wenli |
| Speed | 1700 RPM |
| Number of Ribbon | 10 |
| Number of Frame | 12 |
| Net Weight | 440 Kg |
| Take Up System | Single Roller |
| Cycle Pattern Chain | 1.48 |
| Motor Power | 1.1 kW |
| No of Heads | 10 |
| Weft Density | 3.5-36.7/cm |
| Gross Weight | 540 Kg |
| Max Reed Space | 27mm |
JYZ High Speed Needle Loom are new style machines developed by our company which meets the demand of weave speed and weave quality of many tape manufacturing companies. It can weave various cotton and synthetic materials light tape such as zipper tapes, binding tapes, gross grain ribbons, satin ribbions and rattail cards (Malai Dori) etc.
Faster, High Quality & Convenient:
JYZ series needle looms are designed for the high speed with very high quality finished products. These machines are best suitable for those industries where high production is required. These are easy to operate, delivers high quality products at very high speed with low noise and low maintenance cost.
Applications:
It can weave various cotton, nylons and polyester material light tapes such as zipper tapes, binding tapes, cotton tapes, satin ribbons,gross grain ribbons, fibre glass insulation tapes and rat tail cords (malai dori) etc.
Features:
JYZ series needle looms are designed for giving fine selvage and are quick, noiseless, simple to operate and convenient to maintain etc.
| Business Type | Manufacturer, Exporter, Supplier |
| Country of Origin | India |
| Model Name/Number | JYW 16/20 |
| Brand Name | Wenli |
| Net Weight | 435 Kg |
| Speed | 1300 RPM |
| Weft Density | 3.5 ~ 36.7/cm (8.9 ~ 93/inch) |
| Motor Power | 1.1 kw |
| Number of Frames | 14 |
| Max Reed Space | 20mm |
| No of Heads | 10 |
| Gross Weight | 535 Kg |
| Take Up System | Double Roller |
| Number of Ribbons | 16 |
| Cycle Pattern Chain | 1.46 |
JYW series needle loom can manufacture different kinds of narrow fabric,webbing tapes curtain tape elastic and belts etc.
Faster and Convenient:
JYW series Needle looms are designed to deliver4 high quality finishd products at a high speed with relatively low noise and low maintenance cost.through its easy to operate, it make more reliable product with relatively higher production.
Applications:
It can produce various kinds of narrow fabric webbing Tapes, twill tape , curtain tape, elastic tape, surgical elastic etc.
Features:
JYW series needle looms are equipped with double shedding lever system. It has a stable structure with low vibration, low noise and extremely low maintenance cost.
