10.05 Lac / Piece
| Business Type | Manufacturer, Exporter, Supplier |
| Country of Origin | India |
| Model Name/Number | JYF8/35-192 |
| Brand | Wenli |
| Click to view more | |
Product Details
Gross Weight
650 kg
No of Heads
8
Weft Density
3.5-36.7/cm / 8.9/93/Inch
Take Up System
Double Roller
Width of Reed
35mm
Cycle Pattern Chain
1.48
Motor Power
1.5 Kw
Net Weight
610 Kg
Number of Frame
8
Speed
1000 RPM
Number of Ribbon
8

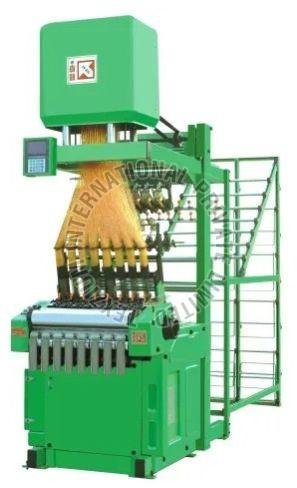

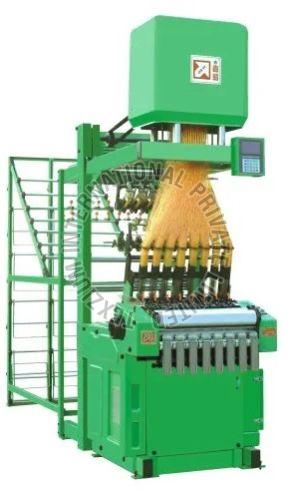

Wenli JYF Series of Jacquard Loom JYF computerized jacquard loom can manufacture different kinds of elastic and non-elastic jacquard fabric. This kind of machine adopts the newest computerized electronic jacquard bibcock which makes its type set is controlled by computer. It's easy to operate, learn and to use.
The machine also adopts a two-speed motor system which makes it faster and convenient when debugging. On the other hand, it adopt pulley feeding which will make the speed steady and equality.
The feature highly precision, low depreciation, and convenient in debugging and maintaining.
Standard Equipment:
Creel (1 Set)
Rubber Feeder (Device On Request)
